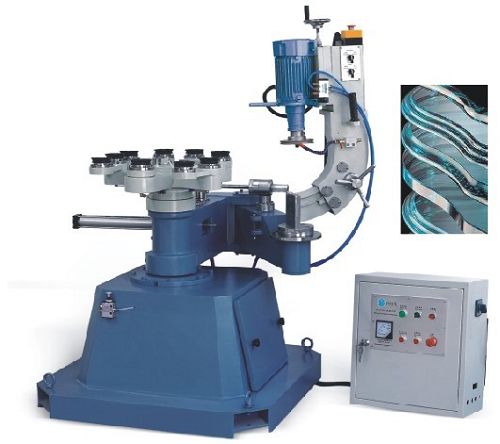

Glass shape beveling machine

Product ID: RF-S1

Send Inquiry
glass shape beveling machine is suitable for processing the edge of round shape, oval shape & other irregular shape of glass sheet with various sizes and thicknesses.

It can process the round & oval shape glass semi-automatically.

The glass beveling machine adopts different wheels to process different shapes like semicircular, flat edge and OG edge, etc. The glass edging machine uses the cup

shape wheel, adjusting the angle of motor. The beveling edge also can be processed.

Technical parameters:
1. Degree of vacuum should be reached: -0.08MPa~-0.1MPa
2. Water pressure: 0.1MPa~0.2MPa
3. Air source pressure: 0.6MPA~0.8MPa
4. Rotating speed of working table: 0.3rpm~3rpm
5. Rotating speed of independent turnplate: 0.7rpm~7rpm
6. Min.incurvature radius: R100mm
7. Max.rotating radius: 1.5m
8. Height of working table: 1.1m
9. Glass thickness: 3-40mm
10. Diameter: ∮100mm-2200mm
11. Max. Bevel degree: 0-45 degree
12. Power: 3.92kw
13. Size:1100 x 1100 x 1800mm
