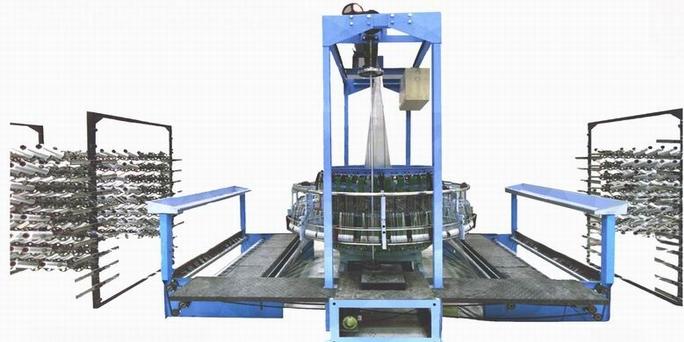

Researched and manufactured by adopting advanced Japanese technology, Four-Shuttle Circular Looms of common practical type controlled by micro-computer, have many traits such as simple structure, convenience in operation and maintenance, low maintenance cost and high output etc. These machines are applied to weave 600D-1800D flat film, and the woven bags produced by them are widely used for packing powder and granule materials. Especially, non-oil rolling shuttle type is much more energy saving (about 30%); the surfaces of woven bags are much more easy to coat and print because there is no oil spills on them.

Item GS-YZJ-4

Mode of Motion Rolling type

Quantity of Shuttle four

Folded Width of Bobbin Cloth 300-800mm

Quantity of Warp 640 roots

Rotational Velocity of Main Motor 120-170r/min

Power of Main Motor 2.2Kw

Output per Eight Hours 600-780m

Measurement(LxWxH) 8800mm*2240mm*2880mm

Manufacture Standard
Thickness of Film: 0.05mm, Width of Film: 2.5mm, Width of Bag: 550mm
