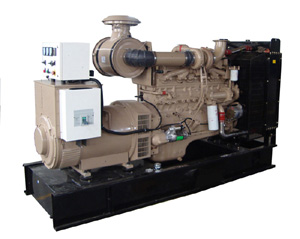

150kw Cummins Diesel Generator
Genset Model Open type SC150GF
Prime Power(kW) 150
Standby Power(kW) 165
Rated current(A) 270
Overall Size(mm) Length(mm) 2450
Width(mm) 850
Height(mm) 1520
Gross Weight(kg) 1800

Diesel Engine Brand Cummins
Model 6CTA8.3-G2
Type water-cooled, 4-stroke, direct injection, 1800rpm
Rated Power(kW) 175
Intake Type Turbocharged
No.of Cylinder 6.L
Bore x Stroke(mm) 114*135
Compression ratio 16.8:1
Displacement(L) 8.27
Mechanical Governor Rate ≦5%
Electronic Governor Rate ≦1%
Exhaust Temperature(°C) 638
Lub oil Capacity(L) 20
Rated Fuel Consumption 30.5L/h (100% load)
Starting method DC 24V Electric starter
Governing Type Electric governor
Alternator Brand Stamford technology alternator(xingnuo)
Model 274F
Rated Power(kW) 150
Power Efficiency 92.90%
Voltage Regulation ≦±1
Excitation Type Brushless
Insulation Class H
