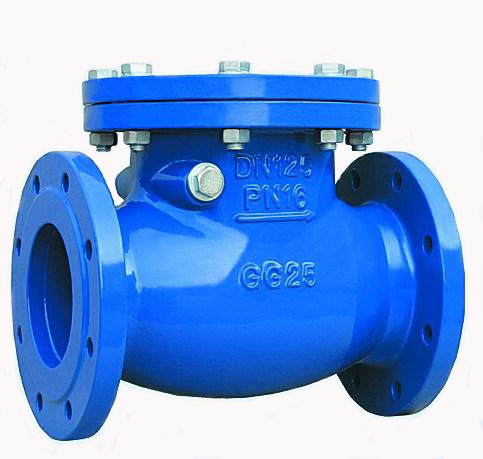

Components
1 Body Cast iron or Ductile iron
2 Seat Brass
3 Disc Seal Ring Brass
4 Disc Cast iron or rion
5 Ingo pin Stainless steel
6 Bonnet Cast iron or duction iron
Application
1 Face to face is according to DIN3202-F6
2 Flange drilled is according to DIN2532/2533/DIN EN 1092-2
3 Nominal Pressure PN10/PN16
TEST
Working pressure 10bars 16bars
Shell pressure 15bars 24bars
Seat pressure 11bars 17.6bars
Dimensions
DN 40 50 65 80 100 125 150 200 250 300
L 180 200 240 260 300 350 400 500 600 700
H 100 100 115 130 135 180 185 230 290 325
D(PN10) 150 165 185 200 220 250 285 340 395 445
D((PN16) 150 165 185 200 220 250 285 340 405 460
1 Body Cast iron or Ductile iron
2 Seat Brass
3 Disc Seal Ring Brass
4 Disc Cast iron or rion
5 Ingo pin Stainless steel
6 Bonnet Cast iron or duction iron
Application
1 Face to face is according to DIN3202-F6
2 Flange drilled is according to DIN2532/2533/DIN EN 1092-2
3 Nominal Pressure PN10/PN16
TEST
Working pressure 10bars 16bars
Shell pressure 15bars 24bars
Seat pressure 11bars 17.6bars
Dimensions
DN 40 50 65 80 100 125 150 200 250 300
L 180 200 240 260 300 350 400 500 600 700
H 100 100 115 130 135 180 185 230 290 325
D(PN10) 150 165 185 200 220 250 285 340 395 445
D((PN16) 150 165 185 200 220 250 285 340 405 460
