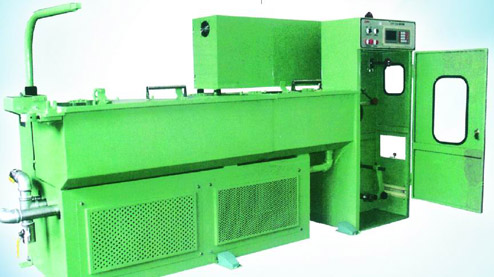

1 Machine Type SWM24-70
2 Finished Wire 0.12-0.60mm
3 Max.Wire inlet 2.05mm
4 Drawing Dies 24
5 Draft Ratio 15%, 6%
6 Max.Capstar Dia 260mm
7 Max.Drawing Speed 20m/s
8 Drawing Power 11-15kw
9 Take-up Power 4-5.5kw
10 Control System PLC, Photoelectric Detection,Color Touchable Screen
11 Power Control Double Conversion
12 Tension Control Balanced Lever Weight Type
13 Traversing Mode Belt Type Synchronous Motor
14 Brake mode Magnetic Brake
15 Lubrication Sector Sprayed-type
16 Rated Voltage 380V 50/60HZ
17 Dimension L2.05*W1.6*H1.9m
18 Weight 3,200kg

Features
1 Two motors type can precisely control the spool wire tension to reduce the slip ratio of wire to a minimum manner
2 Transmission by timing belts
