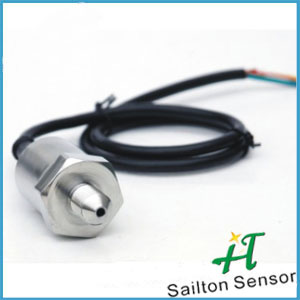

BP9325 0-6kPa-60MPa BP9325 Diffused Silicon Pressure Sensor for Gauge/Absolute Pressure
Product ID: BP9325
Send Inquiry
The main element of BP series pressure transducers is HT series silicon oil-filled sensors, which can transfer pressure to linearizating voltage signal. Have characteristics of high precision, good stability and ingenious configuration. Can measure all sorts of gas and liquid compatible with stainless steel.
Model:
BP9325
RangeRange:
0-6kPa-60MPa
Using range:
gauge, absolute pressure
Power:
1.5mADC/9VDC
Output:
100mV ±20mV
Measurement medium:
liquid or gas compatible with 316LSS
Weight:
0.3KG
Specifications:
Range
Pressure type
0~6KPa~60MPa
Differential pressure type
0~6KPa~2MPa
Liquid level type
0~0.6m~200m
Accuracy
±0.1% ±0.2c±0.3% ±0.5%
Power supply
Constant current
1.5mADC
Constant voltage
9VDC
Signal output
DC 100mV±20mV(BP9350Model: DC 100mV±2mV)
Operating temperature range
-20℃~80℃
Long stability
≤±0.2% F.S/ year
Permitted overload
Is or less than 2X rated range
Connection size
M12*1 or Φ8 gas mouth or user choose
Medium
Liquid or gas compatible with 316LSS
Model:
BP9325
RangeRange:
0-6kPa-60MPa
Using range:
gauge, absolute pressure
Power:
1.5mADC/9VDC
Output:
100mV ±20mV
Measurement medium:
liquid or gas compatible with 316LSS
Weight:
0.3KG
Specifications:
Range
Pressure type
0~6KPa~60MPa
Differential pressure type
0~6KPa~2MPa
Liquid level type
0~0.6m~200m
Accuracy
±0.1% ±0.2c±0.3% ±0.5%
Power supply
Constant current
1.5mADC
Constant voltage
9VDC
Signal output
DC 100mV±20mV(BP9350Model: DC 100mV±2mV)
Operating temperature range
-20℃~80℃
Long stability
≤±0.2% F.S/ year
Permitted overload
Is or less than 2X rated range
Connection size
M12*1 or Φ8 gas mouth or user choose
Medium
Liquid or gas compatible with 316LSS
Certificate
- ISO9001
- CE
- Exia II CT6
