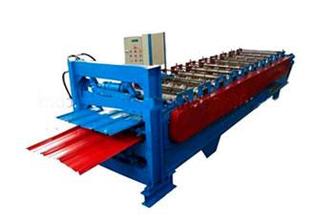

double layer roll forming machine
Technological Process of Double Layer Roll Forming Machine:
Uncoiling---Feeding---Leveling---Punching---Rool Forming---Cutting---Products Collecting
Main Technical Specifications of Double Layer Roll Forming Machine:
Number Items UnitType RF-DL
1 Steel Thickness mm 0.4-0.8
2 Forming Speed m/min 8-18
3 Roller stands stand 18 stands bottom layer; 16stands top layer
4 Roller Material 45# steel, coated with chrome
5 Main Motor Power Kw 5.5
6 Hydraulic cutting Power Kw 3
7 Hydraulic pressure Mpa 12
8 Power Supply 380V, 50HZ,3 phase
9 Tolerance mm 1.5
10 Material of cutting Cr12
11 Control system PLC with touch screen
12 Machine net weight T 12
Uncoiling---Feeding---Leveling---Punching---Rool Forming---Cutting---Products Collecting
Main Technical Specifications of Double Layer Roll Forming Machine:
Number Items UnitType RF-DL
1 Steel Thickness mm 0.4-0.8
2 Forming Speed m/min 8-18
3 Roller stands stand 18 stands bottom layer; 16stands top layer
4 Roller Material 45# steel, coated with chrome
5 Main Motor Power Kw 5.5
6 Hydraulic cutting Power Kw 3
7 Hydraulic pressure Mpa 12
8 Power Supply 380V, 50HZ,3 phase
9 Tolerance mm 1.5
10 Material of cutting Cr12
11 Control system PLC with touch screen
12 Machine net weight T 12
