Features:
Intelligent ergonomic interface, multi-functional program, convenient and simple for operation.
All pneumatic device adopt Japan SMC which ensure the equipment accuracy and durability.
Feeding platform slide automatically controlled by motor, bonding position is selectable.
Manual/auto switch feature helps operation convenient and simple.

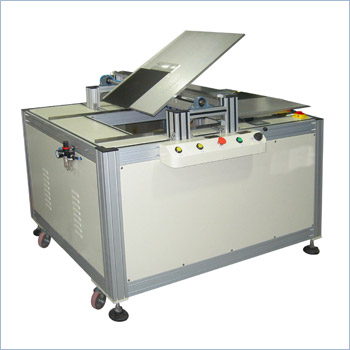

Applicable to all size of LCD Polarizer Tacking.
Specification:
Control System PLC
Operating Interface Touch panel
Pressure Range 1-28.2kgf
Bond Head Accuracy ± 0.01mm
Throughput 180-240PCS/H
Product Max Size 80 inches
Temperature steps 1 step
Power 0.3KW
Thermocouple K Type
Weight 150g
Dimension (L) 1500mm × (W) 1100mm × (H) 1230mm
Intelligent ergonomic interface, multi-functional program, convenient and simple for operation.
All pneumatic device adopt Japan SMC which ensure the equipment accuracy and durability.
Feeding platform slide automatically controlled by motor, bonding position is selectable.
Manual/auto switch feature helps operation convenient and simple.
Applicable to all size of LCD Polarizer Tacking.
Specification:
Control System PLC
Operating Interface Touch panel
Pressure Range 1-28.2kgf
Bond Head Accuracy ± 0.01mm
Throughput 180-240PCS/H
Product Max Size 80 inches
Temperature steps 1 step
Power 0.3KW
Thermocouple K Type
Weight 150g
Dimension (L) 1500mm × (W) 1100mm × (H) 1230mm
