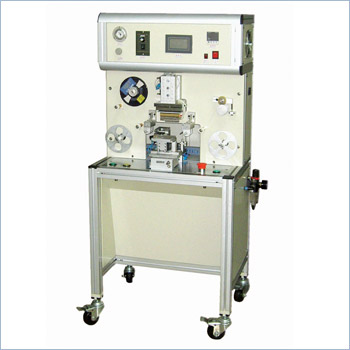

Features:
Constant temperature heating, In-Out feeding.
Unique 30 ° cutter position protects ACF belt under long period operation.
Double layers enhanced insulation. Accurate temperature control sensing.
LCD touch panel and multi-functional interface provide ergonomic operation.
Panasonic PLC adopted.
Applicable to all size of ACF and TAB 、 TCP 、 COG. ACF tacking =/< 7 inches diagonal.
Specification:
Control System Panasonic PLC
Operating Interface Panasonic GT01-PDA
Pressure Range 1-6kgf
Temperature Range 1-400 Degree Celsius
Time Range 1-100 seconds
Max Product Dimension 7 inches diagonal
Throughput 400-500PCS/H
Bond Head Accuracy ± 0.01mm
Cutter Accuracy ± 0.01mm
Power 0.3KW
Thermocouple K TYPE
Weight 80KG
Dimension (L) 610mm × (W) 460mm × (H) 1300mm
Constant temperature heating, In-Out feeding.
Unique 30 ° cutter position protects ACF belt under long period operation.
Double layers enhanced insulation. Accurate temperature control sensing.
LCD touch panel and multi-functional interface provide ergonomic operation.
Panasonic PLC adopted.
Applicable to all size of ACF and TAB 、 TCP 、 COG. ACF tacking =/< 7 inches diagonal.
Specification:
Control System Panasonic PLC
Operating Interface Panasonic GT01-PDA
Pressure Range 1-6kgf
Temperature Range 1-400 Degree Celsius
Time Range 1-100 seconds
Max Product Dimension 7 inches diagonal
Throughput 400-500PCS/H
Bond Head Accuracy ± 0.01mm
Cutter Accuracy ± 0.01mm
Power 0.3KW
Thermocouple K TYPE
Weight 80KG
Dimension (L) 610mm × (W) 460mm × (H) 1300mm
