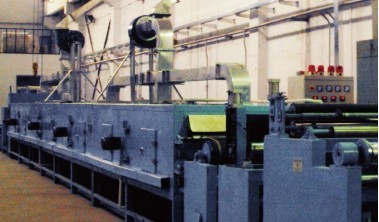

Functions:used for heat setting of plain weave insect screen.Thus treated insect screen has a tight bonding at cross point.uniform mesh,no shifting of warp and weft,without bending and deformmation.
Mechanic structure:complete with unwinding,machines head package,heat up chamber package,needle plate track,width adjusting,machine tail package,reel up package,cooling air system,flue gas exhaust and electric control system.
Technical data:max working width2000~3000mm,max hot air temperature220℃,machine speed 30m/min.(frequency conversion),motor installed power 20.5kw,heat power4 x 60kw(actual consumption50%),overall dimension 18.5x5.6x2.59m
Mechanic structure:complete with unwinding,machines head package,heat up chamber package,needle plate track,width adjusting,machine tail package,reel up package,cooling air system,flue gas exhaust and electric control system.
Technical data:max working width2000~3000mm,max hot air temperature220℃,machine speed 30m/min.(frequency conversion),motor installed power 20.5kw,heat power4 x 60kw(actual consumption50%),overall dimension 18.5x5.6x2.59m
