compressed air filter

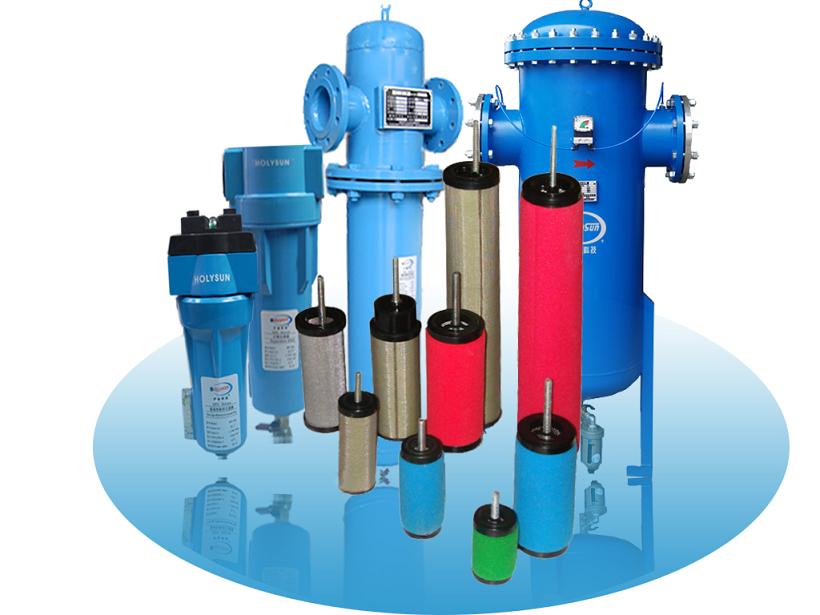

Compressed air filter:
Five grade of precision offered:
1). Separator filter (HF9)For bulk liquid removal plus a 3 micron coalescer (5ppm w/w maximum remaining oil content)Two-stage filtration* First stage: two stainless steel orifice tubes provide 10 micron mechanical separation* Second stage: in-depth fiber media captures solid and liquid particles to 3 micron
2). Air line filter (HF7)For removal of liquid water and oil; removes solid particles to 1 micron (1.0 ppm w/w maximum remaining oil content)Corrosion resistant inner and outer coresTwo-stage filtration* First stage: captures larger particles with alternate layers of fiber media and media screen* Second stage: coalesces aerosols and captures solid particles with multiple layers of epoxy bonded, blended fiber media
3). High efficiency oil removal filter (HF5)For coalescing fine water and oil aerosols; removes solid particles to 0.01 micron (0.01 ppm w/w maximum remaining oil content)Corrosion resistant inner and outer coresTwo stage filtration* First stage: multiple layers of bonded, blended fiber media for fine coalescence* Second stage: multiple layers of bonded, blended fiber media for fine coalescenceOuter coated, closed cell foam sleeve
4). Ultra high efficiency oil removal filter (HF3)For coalescing ultra-fine oil aerosols; removes solid particles to 0.01 micron (0.001 ppm w/w maximum remaining oil content)Corrosion resistant inner and outer coresTwo stage filtration* First stage: coated, closed cell foam sleeve acts as pre-filter and flow disperser* Second stage: multiple layers of matrix blended fiber media for ultra-fine coalescenceOuter coated, closed cell foam sleeve
5). Oil vapor removal filter Activated carbon air filter (HF1)For removal of oil and hydrocarbon vapors normally absorbable by activated carbon; removes solid particles to 0.01 micron (0.003 ppm w/w maximum remaining oil content)Corrosion resistant inner and outer coresTwo stage filtration* first stage: stabilized bed of finely divided carbon particles removes the majority of the oil vapor* Second stage: multiple layers of fiber media with bonded micro fine carbon particles remove the remaining oil vaporMultiple layers of fine media prevent particle migrationOuter coated, closed cell foam sleeve prevents fiber migrationDesigned life is 1000 hours under rated conditions.
Five grade of precision offered:
1). Separator filter (HF9)For bulk liquid removal plus a 3 micron coalescer (5ppm w/w maximum remaining oil content)Two-stage filtration* First stage: two stainless steel orifice tubes provide 10 micron mechanical separation* Second stage: in-depth fiber media captures solid and liquid particles to 3 micron
2). Air line filter (HF7)For removal of liquid water and oil; removes solid particles to 1 micron (1.0 ppm w/w maximum remaining oil content)Corrosion resistant inner and outer coresTwo-stage filtration* First stage: captures larger particles with alternate layers of fiber media and media screen* Second stage: coalesces aerosols and captures solid particles with multiple layers of epoxy bonded, blended fiber media
3). High efficiency oil removal filter (HF5)For coalescing fine water and oil aerosols; removes solid particles to 0.01 micron (0.01 ppm w/w maximum remaining oil content)Corrosion resistant inner and outer coresTwo stage filtration* First stage: multiple layers of bonded, blended fiber media for fine coalescence* Second stage: multiple layers of bonded, blended fiber media for fine coalescenceOuter coated, closed cell foam sleeve
4). Ultra high efficiency oil removal filter (HF3)For coalescing ultra-fine oil aerosols; removes solid particles to 0.01 micron (0.001 ppm w/w maximum remaining oil content)Corrosion resistant inner and outer coresTwo stage filtration* First stage: coated, closed cell foam sleeve acts as pre-filter and flow disperser* Second stage: multiple layers of matrix blended fiber media for ultra-fine coalescenceOuter coated, closed cell foam sleeve
5). Oil vapor removal filter Activated carbon air filter (HF1)For removal of oil and hydrocarbon vapors normally absorbable by activated carbon; removes solid particles to 0.01 micron (0.003 ppm w/w maximum remaining oil content)Corrosion resistant inner and outer coresTwo stage filtration* first stage: stabilized bed of finely divided carbon particles removes the majority of the oil vapor* Second stage: multiple layers of fiber media with bonded micro fine carbon particles remove the remaining oil vaporMultiple layers of fine media prevent particle migrationOuter coated, closed cell foam sleeve prevents fiber migrationDesigned life is 1000 hours under rated conditions.
