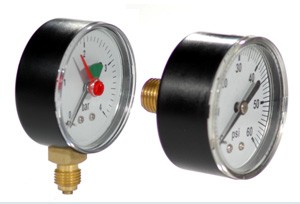

pressure gauge
Dial size:1.5”, 2.0”,2.5”,4.0”
Case type: ABS case
Window: snap on plastic window
Face and pointer: aluminum finish
Movement: brass
Bourdon tube: brass or phosphor bronze
Connection: brass
Thread:1/8”, 1/4”, 3/8”, 1/2”NPT,BSP,BSPT or according to the customer’s request
Accuracy: ASME Grade A
Pressure range: -30”-0-6000psi
Application: for measurement of steam, air, oil, water and other pressure media, which have no effect on bronze and brass
Case type: ABS case
Window: snap on plastic window
Face and pointer: aluminum finish
Movement: brass
Bourdon tube: brass or phosphor bronze
Connection: brass
Thread:1/8”, 1/4”, 3/8”, 1/2”NPT,BSP,BSPT or according to the customer’s request
Accuracy: ASME Grade A
Pressure range: -30”-0-6000psi
Application: for measurement of steam, air, oil, water and other pressure media, which have no effect on bronze and brass
