SPECIFICATIONS
MATERIAL: COPPER
MAX. VOLTAGE: 600 V
MAX. CURRENT: 22-16 AWG:19A 16-14 AWG: 27A 12-10 AWG: 48A
SHRINK TEMP.: 150℃
EASE CODE D , d, B, L, COLOR, WIRE RANGE

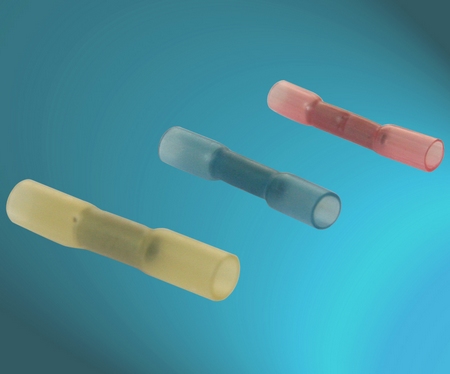

TM-HS-BU-1.5, 5.8, 1.7, 15, 36, RED, 22-16AWG 0.5-1.5mm2
TM-HS-BU-2.5, 6.9, 2.4, 15. 36, BLUE, 16-14AWG 1.5-2.5mm2
TM-HS-BU-6.0, 8.0, 3.6, 15, 42, YELLOW, 12-10AWG 4-6mm2
MATERIAL: COPPER
MAX. VOLTAGE: 600 V
MAX. CURRENT: 22-16 AWG:19A 16-14 AWG: 27A 12-10 AWG: 48A
SHRINK TEMP.: 150℃
EASE CODE D , d, B, L, COLOR, WIRE RANGE
TM-HS-BU-1.5, 5.8, 1.7, 15, 36, RED, 22-16AWG 0.5-1.5mm2
TM-HS-BU-2.5, 6.9, 2.4, 15. 36, BLUE, 16-14AWG 1.5-2.5mm2
TM-HS-BU-6.0, 8.0, 3.6, 15, 42, YELLOW, 12-10AWG 4-6mm2
