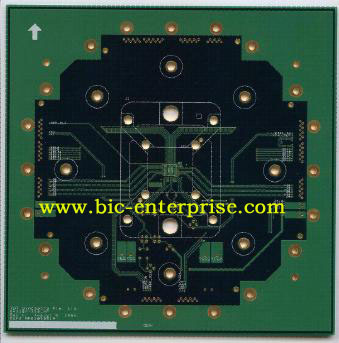

Impedance controlled PCB

Product ID: Impedance controlled

Send Inquiry
1) L1 and L4, track /space(mil) 5.1/6, precision +/-10%
90 ohm differential impedance
L1, L2 and L4, track /space(mil) 6.1/7.8, precision +/-10%
100 ohm differential impedance
2). 230*230mm/1up, FR-4 Tg 170
3). 4 layers, 35 μm copper, 2.5mm thick
4). Min.track/space: 4/4 mil
5). Min. hole size: 0.25mm
6). Immersion gold
7). High power electronics
