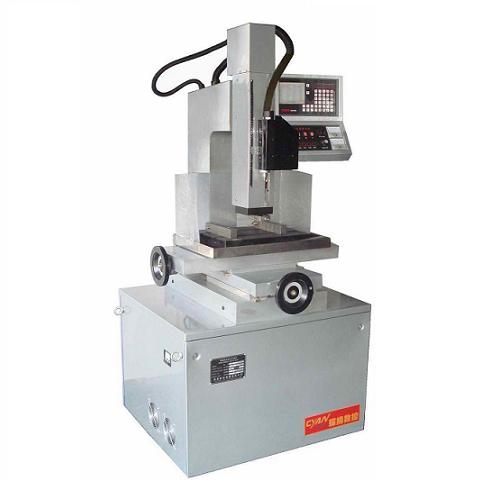

Features:
Drilling can enter material at any angle, into curved surfaces, irregular shapes;
Precision servo motor control allowing drilling stable;
Designed for drilling in hardened tool steel, carbides and other conductive materials;
Drilling capacity from 0.3 mm to 3.0 mm diameter brass or copper electrode tubes;
The processing speed can reach 30~60mm each minute ;
The flushing medium used by this machine is distilled water and environment friendly;
Automatic pressure release function is used in the system;
The newest all digital high-frequency circuit
Worktable is Precision granite to maintain longer life.
Drilling can enter material at any angle, into curved surfaces, irregular shapes;
Precision servo motor control allowing drilling stable;
Designed for drilling in hardened tool steel, carbides and other conductive materials;
Drilling capacity from 0.3 mm to 3.0 mm diameter brass or copper electrode tubes;
The processing speed can reach 30~60mm each minute ;
The flushing medium used by this machine is distilled water and environment friendly;
Automatic pressure release function is used in the system;
The newest all digital high-frequency circuit
Worktable is Precision granite to maintain longer life.
Specifications
- Work Table Dimension(mm)
- 400×300
- MAX. Workpiece Dimension(mm)
- 630×420
- Table Travel X/Y(mm)
- 370×270
- Z-Axis Travel
- 280
- MAX. Length of Electrode(mm)
- 500
Features
- Power Input(V)
- 220/380/415
- MIN. Electrode Diameter(mm)
- Ø0.3-3.0
- Max. Rating Power(KVA)
- 3
- MAX. Workpiece Weight(kgs)
- 80
- Packing Dimension(mm)
- 1100×1100×2000
