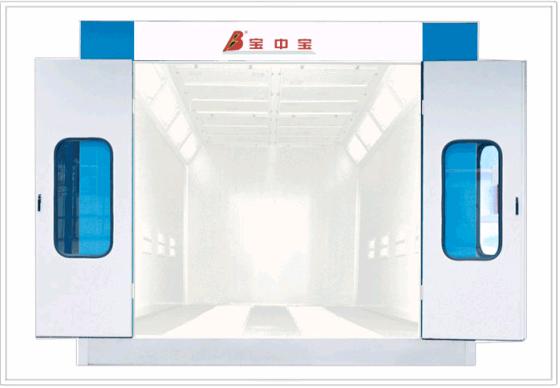

I Cabin System
1.Wallboard: EPS (epispastics polystyrene)Colorful Steel Skin Boards, 50mm Thick, Tongue & Groove Style, Compound Construction.Anti-flame and Heat-Insulation Galvabized Roof Panel.
2.Basement: Galvanized Steel Sheet and Square Steel Pipe assembling, Two Rows Grid & Three Embossed Plate.
3.Ramp: Three Embossed Steel Plates,each 900mm wide.
II Air Intake and Exhaust System
1. Inhaling Ventilator: Model:YDW4.5L1, Blower capacity:12000m3/h
Pressure:815Pa, Rolling speed:900rpm, Pow: 4kw, Quantity: 2 sets
2. Exhaust Ventilator: Model:YDW 5.6S, Blower capacity:15000m3/h
Pressure:810Pa, Rolling speed:900rpm, Power:5.5kw, Quantity:1set
Air Volume: 24000m3/h; Air Speed: 0.35m/s
III Air Purification System
Dual Filtering Structure, The Primay Filter Can Capture Granules Larger than 10 μm. Ceiling Filter imported from Holland can Capture Granules Bigger than 4μm. The floor filter is Multi-Layer Fiberglasss Filter imported from Italy. The Whole Purification System Has Capacity of Large Volume of Dust. Its Filtering Rate Reaches 98%. Air Pressure Balance Gauge, TSP≤1.4mg/m3
IV Heating System
1. Burner: Italy Riello Brand,G20 Diesel Burner, 180000Kcal/h, 10N Damp Motorner, 180000Kcal/h, 10N Damp Motor
2. Heat Energy Converters: Stainless Steel, Argon Arc Welding, The Heat Exchange Rate 85%
3. Max Temp:80℃ Heating Time: 4-6min, Fuel Consumption: 4-5kg/vehicle
V Light System
Ceiling Light: 24 pcs 36w Philips Lamp; Bottom Light: 16 pcs 36w Philips Lamp, 900 Lux
VI Electronic controlling system
Micro-Computer Programme Controlling, Spray & Baking Switch, Light Switch,Emergency Stop, Breakdown Alarm
VII Environmental conservation System
active carbon filter, the outlet of exhaust gas comforms to GB16297-1996 National Standard
