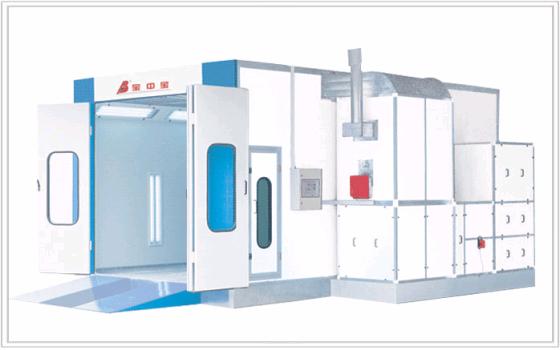

Wallboard： EPS (epispastics polystyrene)Colorful Steel Skin Boards, 70mm Thick, Tongue & Groove Style, Compound Construction, Aluminum-alloy Frame. Anti-flame and Heat-Insulation.
Basement: Full Grid, Adjustable Height, Galvanized Steel Sheet Construction, Three Embossed Steel Ramps
InhalingVentilator:Model:YDW4.5L 1,Blowercapacity:14000m3/h,Pressure:800Pa,Rollingspeed:940rpm, Power: 4kw, Quantity: 2 sets
ExhaustVentilator:Model:YDW5.6M,Blowercapacity:21000m3/h,Pressure:800Pa,Rollingspeed:900rpm, Power:7.5kw, Quantity: 1set
Air Volume: 28000m3/h; Air Speed: 0.4m/s
Air Purification System: Dual Filtering Structure, The Primary Filter Can Capture Granules Larger than 10μm. Ceiling Filter Capture Granules Bigger than 5μm. The Whole Purification System Has Capacity of Large Volume of Dust. Its Filtering Rate Reaches 98%.Air Pressure Gauge, Tsp≤1.4mg/m3
Burner: Italy Riello Brand, RG5S Diesel Burner, 260000Kcal/h, 20N Damp Motor
Heat Energy Converter: Stainless Steel, Argon Arc Welding, The Heat Exchange Rate 85%. Max Temp:80℃ , Heating Time:4-5min(20-60??/span>), Fuel Consumption: 4-5kg/vehicle
Ceiling Light: 32 pcs 36w Philips Lamp; Bottom Light: 16 pcs 36w Philips Lamp, 1000 Lux
Micro-Computer Programe Controlling, Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm Multi-Layer Fiberglass Filter
Basement: Full Grid, Adjustable Height, Galvanized Steel Sheet Construction, Three Embossed Steel Ramps
InhalingVentilator:Model:YDW4.5L 1,Blowercapacity:14000m3/h,Pressure:800Pa,Rollingspeed:940rpm, Power: 4kw, Quantity: 2 sets
ExhaustVentilator:Model:YDW5.6M,Blowercapacity:21000m3/h,Pressure:800Pa,Rollingspeed:900rpm, Power:7.5kw, Quantity: 1set
Air Volume: 28000m3/h; Air Speed: 0.4m/s
Air Purification System: Dual Filtering Structure, The Primary Filter Can Capture Granules Larger than 10μm. Ceiling Filter Capture Granules Bigger than 5μm. The Whole Purification System Has Capacity of Large Volume of Dust. Its Filtering Rate Reaches 98%.Air Pressure Gauge, Tsp≤1.4mg/m3
Burner: Italy Riello Brand, RG5S Diesel Burner, 260000Kcal/h, 20N Damp Motor
Heat Energy Converter: Stainless Steel, Argon Arc Welding, The Heat Exchange Rate 85%. Max Temp:80℃ , Heating Time:4-5min(20-60??/span>), Fuel Consumption: 4-5kg/vehicle
Ceiling Light: 32 pcs 36w Philips Lamp; Bottom Light: 16 pcs 36w Philips Lamp, 1000 Lux
Micro-Computer Programe Controlling, Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm Multi-Layer Fiberglass Filter
