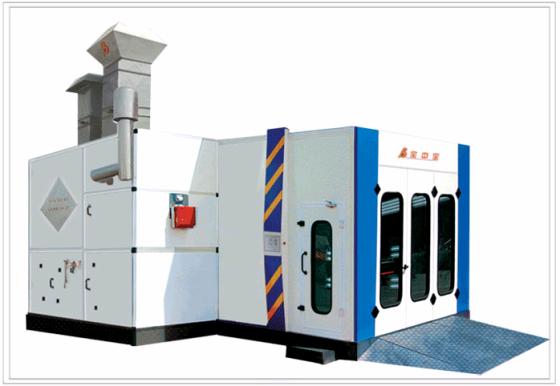

I Cabin System
1. Wallboard: EPS (epispastics polystyrene) Colorful Steel Skin Boards,70mm Thick, Tongue & Groove
Style Compound Construction, Aluminum-alloy Frame, Anti-flame and Heat-Insulation, Useful Life Time:15years.
2. Basement: Full Grid, Adjustable Height, Galvanized Steel Sheet Construction, Embossed Steel Ramps.
II Air Circulation System
3. Inlet Turbine Fan: Capacity: 25000m3/h, Power: 7.5kw, Quantity: 1set,
Outlet Turbine Fan: Capacity: 25000m3/h, Power: 7.5kw, Quantity:1set
4.54 pcs Ceiling Nozzles with 3 Centrifugal Fans (2.2kw/set) for Drying Water Paint.
5. Air Volume: 38500m3/h; AirSpeed: 0.5m/s, ExchangeAir Times:400time/h
III Air Purification System
Dual Filtering Structure, The Primary Filter can capture Granules Larger than 10 μm. Ceiling
Filter captures Granules Bigger than 4μm. The Whole Purification System Has Capacity of Large Volume
of Dust. Its Filtering Rate Reaches 98%. Air Pressure Balance Gauge, TSP≤1.2mg/m3
IV Heating System
1 Burner: Italy Riello Brand,RG5S Diesel Burner, 260000Kcal/h, 20N Damp Motor.
2 Heat Energy Converter: SUS304Stainless Steel, Argon Arc Welding.
3 Max Temp: 80C, Heating Time: 4-5min(20-60C), Fuel Consumption: 4-5kg/vehicle.
V Lighting System
Ceiling Light: 32 pcs 36w Philips Lamp; Bottom Light: 32 pcs 20w Philips Lamp, more than 1100 Lux.
VI Electric Controlling System
PLC Controlling, Soft Touching Botton, Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm,
Time Meter Machine.
VII Environmental System
Multi-Layer Fiberglasss Filter
1. Wallboard: EPS (epispastics polystyrene) Colorful Steel Skin Boards,70mm Thick, Tongue & Groove
Style Compound Construction, Aluminum-alloy Frame, Anti-flame and Heat-Insulation, Useful Life Time:15years.
2. Basement: Full Grid, Adjustable Height, Galvanized Steel Sheet Construction, Embossed Steel Ramps.
II Air Circulation System
3. Inlet Turbine Fan: Capacity: 25000m3/h, Power: 7.5kw, Quantity: 1set,
Outlet Turbine Fan: Capacity: 25000m3/h, Power: 7.5kw, Quantity:1set
4.54 pcs Ceiling Nozzles with 3 Centrifugal Fans (2.2kw/set) for Drying Water Paint.
5. Air Volume: 38500m3/h; AirSpeed: 0.5m/s, ExchangeAir Times:400time/h
III Air Purification System
Dual Filtering Structure, The Primary Filter can capture Granules Larger than 10 μm. Ceiling
Filter captures Granules Bigger than 4μm. The Whole Purification System Has Capacity of Large Volume
of Dust. Its Filtering Rate Reaches 98%. Air Pressure Balance Gauge, TSP≤1.2mg/m3
IV Heating System
1 Burner: Italy Riello Brand,RG5S Diesel Burner, 260000Kcal/h, 20N Damp Motor.
2 Heat Energy Converter: SUS304Stainless Steel, Argon Arc Welding.
3 Max Temp: 80C, Heating Time: 4-5min(20-60C), Fuel Consumption: 4-5kg/vehicle.
V Lighting System
Ceiling Light: 32 pcs 36w Philips Lamp; Bottom Light: 32 pcs 20w Philips Lamp, more than 1100 Lux.
VI Electric Controlling System
PLC Controlling, Soft Touching Botton, Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm,
Time Meter Machine.
VII Environmental System
Multi-Layer Fiberglasss Filter
