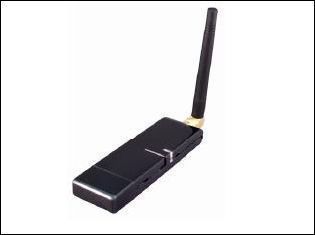

This device is the perfect solution for your wireless network applications based on the
IEEE 802.11b/g standard that offers data rate up to 54Mbps in the wireless LAN
environment. It is a high-speed wireless network device plugs into your system and
accesses to the LAN or peer-to-peer networking easily without wires or cables. It allows
you to access printers, files, and other network resources no matter where.
IEEE 802.11b/g standard that offers data rate up to 54Mbps in the wireless LAN
environment. It is a high-speed wireless network device plugs into your system and
accesses to the LAN or peer-to-peer networking easily without wires or cables. It allows
you to access printers, files, and other network resources no matter where.
Specifications
- SPEC:
- Standard IEEE 802.11b/g
- Antenna Connector SMA (2dBi)
- Frequency Range 2.400GHz~2.4835GHz
- Operating Frequency / Channel
- �� 2.412~2.462GHz (Canada, FCC) / 11 Channels
- �� 2.412~2.484GHz (Japan, TELEC) / 14 Channels
- �� 2.412~2.472GHz (Euro, ETSI) / 13 Channels
- Modulation Technique
- �� Orthogonal frequency division multiplexing (OFDM)
- �� Direct Sequence Spread Spectrum (CCK, DQPSK, DBPSK)
- Security 64/128bit WEP, WPA, WPA2, 802.1x and 802.11i
- Media Access Protocol CSMA/CA (Collision Avoidance) with ACK
- Output Power
- �� 11g: 14dBm (Typical)
- �� 11b: 17dBm (Typical)
- Data Rate
- �� 11g: 54, 48, 36, 24, 18, 12, 9 and 6Mbps with auto-rate
- fall back
- �� 11b: 11, 5.5, 2, and 1Mbps with auto-rate fall back
- Sensitivity
- �� 54Mbps: -68dBm
- �� 11Mbps: -80dBm
- Working Mode Ad-Hoc or Infrastructure
- Throughput 22Mbps@54Mbps; 5.5Mbps@11Mbps
- Host Interface A-Type USB 2.0 connector
- Operating Temperature 0~55℃ ambient temperature
- Storage Temperature -20~70℃ ambient temperature
- Power Consumption
- Continuous transmission mode: 290mA at 5VDC (Max.)
- Continuous reception mode: 240mA at 5VDC (Max.)
- Operating & Storage Humidity 90% maximum
- (non-condensing)
- Operating System Support
- Windows 98SE/ME/2000/XP/VISTA, Mac
- Approval
- �� FCC Part 15
- �� CE
Features
- Features:
- Supports USB 2.0
- Works with IEEE 802.11b/g standard (at 2.4GHz)
- for compatibility & mobility
- Up to 54 Mbps data transfer rate
- Ad-Hoc or Infrastructure mode
- Soft AP (Access Point) feature creates AP function
- Compact pocket-sized design, light-weighted
Certificate
- FCC
- CE
