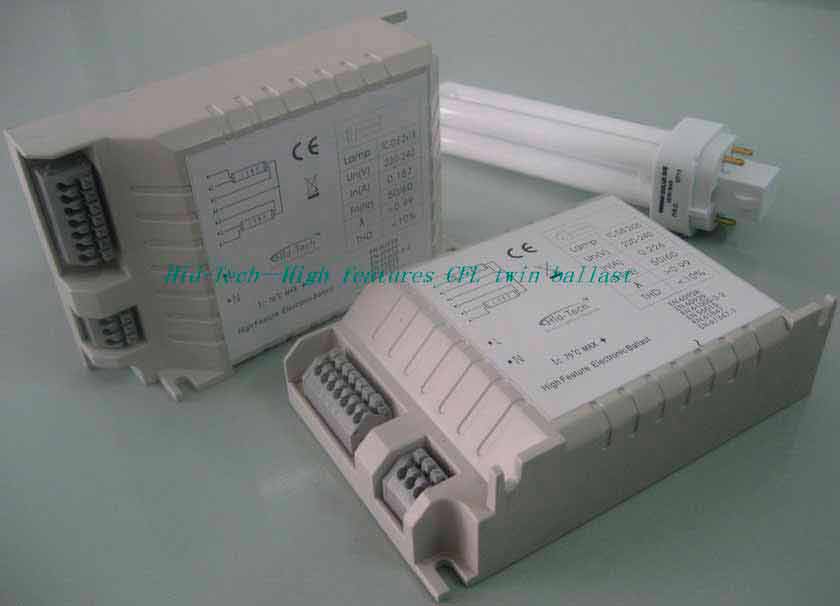

Electronic ballast for twin CFL

Product ID: EB240-CFL7/32X2

High power factor with power factor correction
High lumen factor/Low THD and low crest factor
Resisting the electromagnetic interference and surge current
Abnormal protection against open load, short circuit and lamp failure
Preheat start to prolong lamp life
Glare-free and no noise
High reliability

Specifications

EB240CFL7X2

240V; 50/60Hz; 14W; 0.059A; power factor>99%; THD95%; dimension=123X78X33mm

EB240CFL9X2

240V; 50/60Hz; 18W; 0.076A; power factor>99%; THD95%; dimension=123X78X33mm

EB240CFL11X2

240V; 50/60Hz; 22W; 0.092A; power factor>99%; THD95%; dimension=123X78X33mm

EB240CFL13X2

240V; 50/60Hz; 26W; 0.109A; power factor>99%; THD95%; dimension=123X78X33mm32mm

EB240CFL18X2

240V; 50/60Hz; 36W; 0.154A; power factor>99%; THD95%; dimension=123X78X33mm

Features

EB240CFL26X2

240V; 50/60Hz; 52W; 0.217A; power factor>99%; THD95%; dimension=123X78X33mm

EB240CFL32X2

240V; 50/60Hz; 64W; 0.267A; power factor>99%; THD95%; dimension=123X78X33mm

Certificate
