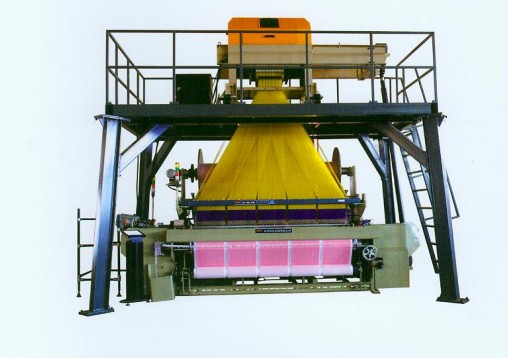

This jacquard rapier loom is used to weave all kinds of spiral-satin or jacquard towel for Face,tea bath and floor etc.With the material of cotton,woll and blended yarns.
The loom adopts double-life high-speed electronic jacquard machine. It has the features of high running speed, good stability and wide suitability.It can weave all kinds of patterns of towel with same height terry. Also the height of terry can adjust easily and widely.
The loom adopts double-life high-speed electronic jacquard machine. It has the features of high running speed, good stability and wide suitability.It can weave all kinds of patterns of towel with same height terry. Also the height of terry can adjust easily and widely.
Specifications
- GA799-II
- Technical specification:
- Reed width(cm):200,230,250,260,280
- Weft insertion form: composit movement of six linkages with small eccentric,central joint
- Beating-up: four linkages, short crank
- Warp let-off: positive mechanical let-off
- Heigh of terry: 2-12times stepless adjustment
- Terry formation: with movable reed, controlled by mechanical or electromagnet
- Format: 1344,2488,2688,3440
