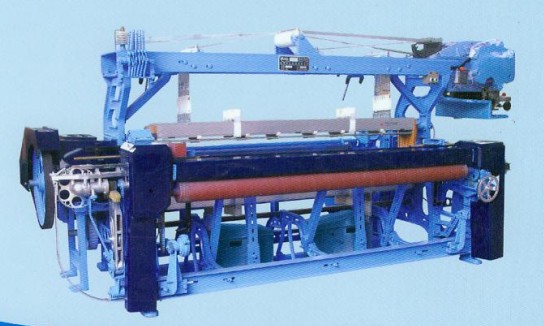

The product has patented. The loom is suitable chiefly to weave the fabrics made of cotton and blended yarns, it is capable of weaving small jacquard fabrics, the machine can accommodate a harness frame of 16 shafts.
Specifications
- GA798
- Metric reed width : 190cm 、 200cm 、 210cm 、 230cm 、 250cm 、 280cm 、 330cm 、 360cm
- Speed :200-140r/pm
- Shedding :Upper mechanical dobby, spring reversing motion Maximum 4-20shafts healed frame
- Weft insertion form: 6- Composite movement of four linkages with small eccentric, central transfer weft insertion
- Beating –up motion :Long connecting crank beating-up mechanism
- Warp let-off motion: Negative, beam disc diameter 600mm, screw to adjust space
- Take up and rolling-up :Continuous winding, reel diameter 450mm
- Warp stop :6 row electric warp stop
- Weft stop: Piezoelectricity model sensor control weft stop
