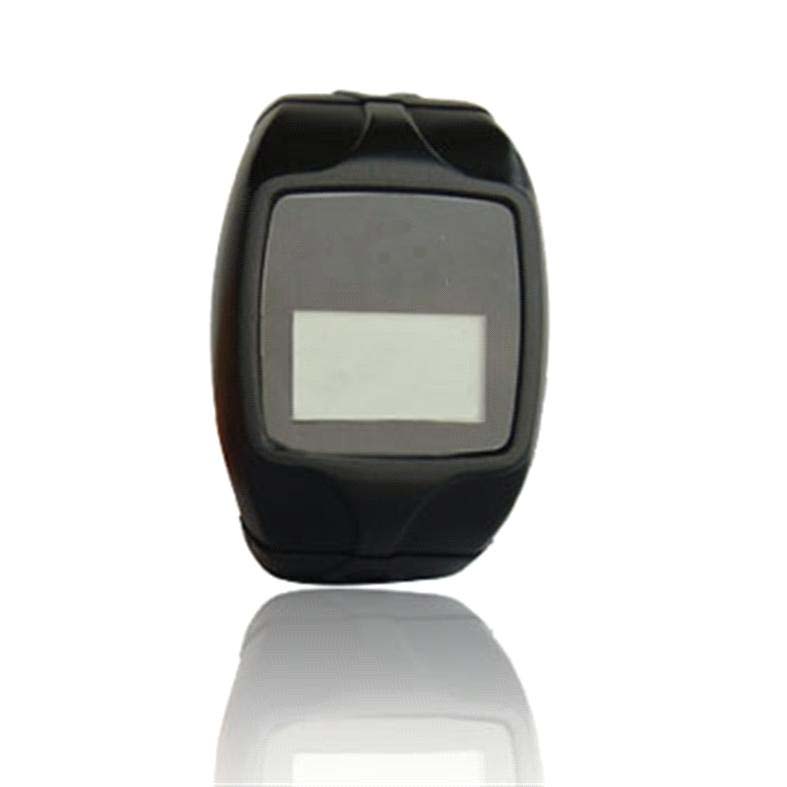

Working Based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets by SMS or GPRS.This device can be use in Vehicle rental / Fleet management etc.Protecting child / the old/ the disabled / pet etc.Provide peace-of-mind for businessmen.Tracking criminals secretly.
Specifications
- Dimension/Weight/GPS sensitivity
- ----------Dimension :73mm*54mm*23mm
- -----------Weight :120g
- ------------Network :GSM / GPRS
- -----------GPS sensitivity: -159 dBm
- ----------Protocol :TCP or UDP
- ----------GPS chip :SIRF III chip
- GSM module/Solution/Humidity
- -----------GSM module: Simcom SIM300/SIM340
- ----------Solution: ARM7
- ----------- Humidity :5% ~ 95% non-condensing
- ------------Battery life: 80 hours
- -----------Storage temp -40 °C ~ +85 °C
- ------------Operation temp -20 °C ~ +55 °C
- Wall charger/Car charger
- -----------Wall charger :Input (110~220V) => Output (5V)
- ----------Car charger: Input (9~24V) => Output (5V)
- GPS accuracy/Band
- -----------GPS accuracy: 5m (20m after satellite drift)
- -----------Band: 850/1800/1900 or 900/1800/1900 or850/900/1800/1900 MHz
- Battery/Time to first fix
- ----------Battery Chargeable changeable :3.7V 850mAh Li-ion battery
- -----------Time to first fix :Cold status = 45s; Warm status = 35s; Hot status = 1s
Features
- Real-time tracking
- ----------Real-time tracking. Hang up the call and reply real-time Geo-info
- ---------Auto tracking. Send Geo-info for certain times with certain internal
- Two-way communication
- ----------Two-way communication. Communicate with the tracker when call the number
- ----------SOS. Press the SOS button when in Emergency
- ------------Geo-fence. Let the tracker move in certain district
- Movement alarm
- ---------Movement alarm. Let the tracker move around a center
- --------Overspeed Alarm. Alarm when tracker moves exceed the setting speed
- 3. Low battery. Alarm when the voltage is low than settled figure
- Monitoring
- ----------Home. Receive the geo-info with some settled content
- --------- Monitoring. Monitors can track the device without interfering the holder
- ◆SMS center. Send the Geo-info to the SMS center
- ◆Belt-open Alarm. Alarm when open the belt or the belt is broken
- GPRS setting
- ---------- GPRS setting. Support any software
- ----------Home monitoring. Set up the host at home, let the tracker move around the host
