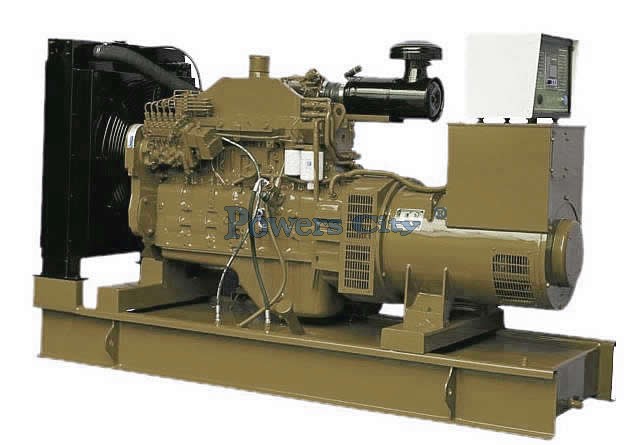

Model CS28-60
Frequency 60HZ
Power Standby Power 24KW / 30KVA
Prime Power 22KW / 27.5KVA
Open type Dimension(L*W*H) mm 1600×600×1200
Weight Kg 700
Engine Manufacturer Cummins
Model 4B3.9-G1
Cylinder Arrangement 4 in line
Air Intake System Air natural
Fuel System A type fuel pump
Displacement 3.9L
Bore and Stroke 102×120(mm)
Compression Ratio 16.5:1
Rated RPM 1800rpm
Max. Standby Power at Rated RPM 65KW
Frequency Regulation, Steady State ≤1.5%
Exhaust Gas Flow 6.40m3/min
Max Intake Restriction 6.13kPa
Total Oil Capacity 11L
Total Coolant Capacity 20L
Manufacturer Stamford
Model BCI 184E1
Connecting Type 3 Phase and 4 Wires, "Y"
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, self-exciting
Insulation Class H/H
Telephone Influence Factor (TIF) ＜50
THF ＜2%
Voltage Regulation, Steady State ≤±1%
Alternator Capacity 25KVA
Alternator Efficiencies 85.3%
