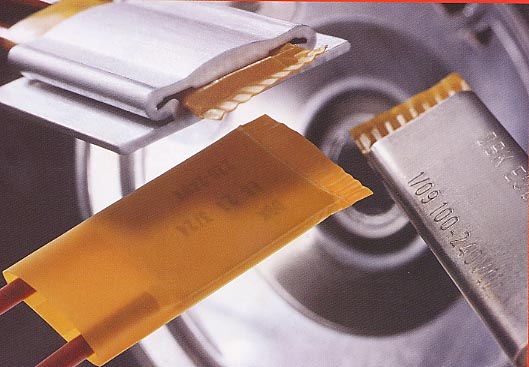

PTC conductive heating elements are dynamic heating elements
combining heating and temperature limiting in a single unit
Heating of solid bodies, containers, fluids and industrial appliances.
combining heating and temperature limiting in a single unit
Heating of solid bodies, containers, fluids and industrial appliances.
Specifications
- PTC - Surface Heating Profiles (HP)
- The HP series features a compact design and high power density. The flat aluminium housing can be easily installed and ensures optimum heat transfer.
- - Output range: up to 350W at optimum heat transfer
- - Voltage range: 110-240V AC/DC
- - Special voltages(e.g. 12-24V) on request
- - Approvals: UL, CSA and VDE
- PTC - Build-in Surface Heaters (EB)
- Basic heating elements for installation in sites where sufficient clamping contact must be guaranteed in order to continuously maintain optimum heat transfer.
- - Output range: up to 250W at optimum heat transfer
- - Voltage range: 110-240V AC/DC
- - Special voltages(e.g. 12-24V) on request
- - Approvals: UL, CSA and VDE
- PTC - Surface Heater Discs (HT / HS
- High-quality compact heating element of round shape with central mounting hole or with adhesive foil for easy installation.
- - Output range: up to 200W at optimum heat transfer
- - Voltage range: 110-240V AC/DC
- - Special voltages(e.g. 12-24V) on request
- - Approvals: UL, CSA and VDE
- NIMBUS P Surface Heaters
- - Power range: 70W - 110W (free in air) 250W - 300W (max. achievable power with good thermal contact)
- - Voltage range: 110-240V AC/DC
- - Other voltage ranges (e.g. 12-24V) available on request
- - Flat design with large contact surface
- - Approvals: UL, CSA and VDE
