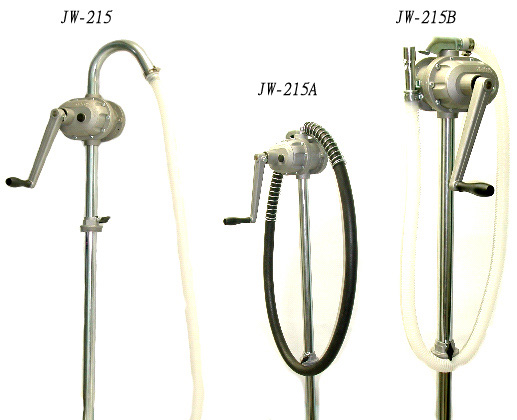

Rotary Drum Pump

Product ID: JW-215

Send Inquiry
Specifications
  • Pump Type: Rotary - Gear
  • Flow: 1L / Stroke
  • Maximum Fluid Temperature: 140°F / 60°C
  • Mounting: 2" MNPT Bung Adapter
  • Suction Tube Length: 40" Maximum
  • Inlet: 1-1/4" O.D.
  • Outlet: 1" O.D. Curved Spout
  • Wetted Parts: Cast Aluminum, Plated Steel, NBR & PE
  • Maximum Viscosity: 500 SSU (or SAE 30)
  • Option: Rubber Hose and Non-drip Nozzle
  • Standard Packing: 5pcs/ctn, NW: 30kgs, GW: 32kgs, Cuft: 3.15'
Features
  • Commonly used for dispensing or transferring low viscosity and non-corrosive petroleum based fluids, such as Petrol, Diesel, Kerosene, Lube, Fuel, Machine Oil, etc.
  • Counter clockwise and clockwise operation for discharging freely.
  • Vertical conveying distance of 15 meters, horizontal conveying distance of 50 meters.
  • Supply with 2" bung adapter and 3-piece or 40" long plated steel suction tube to fit most 15, 30 and 55 gallon drums.
  • Self-priming unit, dispenses approximately 36 oz per stroke.
  • Do not use with organic solvents, alkalis, acids and water-based fluids.
  • Supply with Suction Filter to stainer the dirt and ensure pump life.

Main Products

Rotary Drum Pump, Lift Acting Drum Pump, Lever Acting Drum Pump, Syphon Drum Pump, Plastic Drum Pump, Drum Wrench
