Water Cooled Chiller (Close Type)

Click here for details.

Water Cooled Chiller (Close Type)

Product ID: WU-2M, WU-3M, WU-5M, WU-8M, WU-10M, WU-15M, WU-20MD, WU-30MD

Send Inquiry

Features

Microprocesser Automated Control System:

We make high precision temperature of come true even to 1°C difference that will insure your product quality uniformly.

Easy-to-Watch Control Panel:

You may look after temperature indicating, temperature control, operating condition, alarming and easy-to operate through a well-seeming panel.

Fully Automatic Power Saving Control System:

Unique owned special program can start up step by step until to whole functions work stably. Once the set temperature reaches, the chiller will also stop with step by step to save energy.

High Efficient Components and Most Safe Protections:

Equipped with high efficient compressor imported from Europe America or Japan. Chiller can work perfectly by mean of complete series of elements such as Electronic control instrumentation, high/low pressure protector, Drier/Filter of refrigerant and overload relay.

Super High Efficiency Heat Exchanger:

Using the latest SUS316 condenser, copper pipe C1220 screw type evaporator.

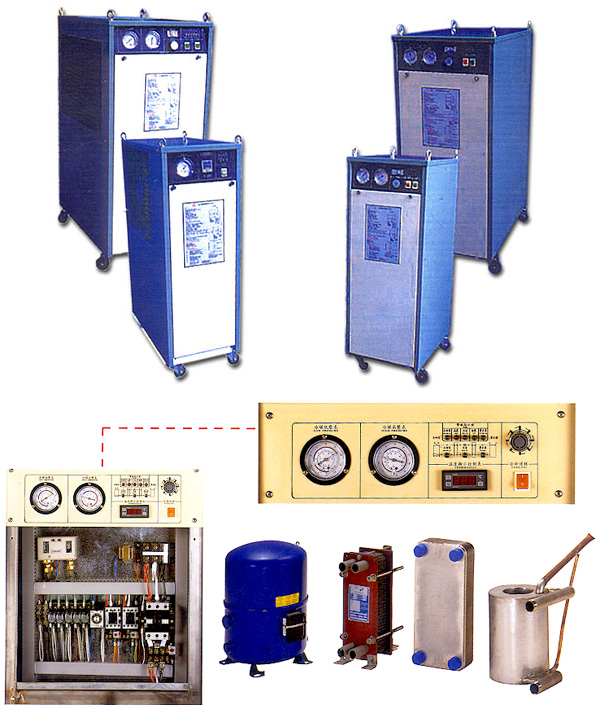

Typical Components

Electronic Thermocouple
High Pressure Gauge
Low Pressure Gauge
Dryer/Filter

Safety System

Overload of Compressor
Overload of Pump
High/Low Pressure Gauge
Signal Lamp
Float Switch
Buzzer

Options

Pressure Gauge
Three Way Valve
Cryostat
Heat Exchanger

Cooling capacity based on ambient temp. +35°C, Chilled water inlet temp. at +12°C and Outlet temp. at +7°C.
Cooling water quantity about 12L/mil per 1200 Btu/Hr. needed.
Don't put the heat to be removed over the cooling capacity. i.e. [Heat to be removed x 1.25 = cooling capacity]. To ensure the chiller is used under normal condition.
In case of using in 50Hz area, then cooling capacity becomes as (60Hz) x 0.83 = (50Hz).

Model	Unit	WU-2M	WU-3M	WU-5M	WU-8M	WU-10M	WU-12.5M	WU-15M	WU-20MD	WU-25MD	WU-30MD
Temp. Range	°C	+5°C / 30°C	+5°C / 30°C	+5°C / 30°C	+5°C / 30°C	+5°C / 30°C	+5°C / 30°C	+5°C / 30°C	+5°C / 30°C	+5°C / 30°C	+5°C / 30°C
Cooling Capacity	But/Hr	24000	36000	58000	90000	120000	140000	180000	240000	300000	360000
	Kcal/Hr	6048	9072	14600	23000	30260	35260	45340	60480	76500	90700
	Kw	7	10.5	17.5	28	35	40	52	70	87	105
Power Consumption	Kw	3.6	5	7.5	12	15.4	17.3	20.7	24.5	31.5	39
Power Source & Operating Current	1Dia.220V60Hz/A	16	22	33
	3Dia.220V60Hz/A	8	12	18	25	30	38	50	64	79	102
	3Dia.380V60Hz/A	5	7	11	15	19	22	28	35	43	58
Compressor	Type	MT-22	MT-36	MT-56	MT-80	MT-100	MT-125	MT-160	MT-100	MT-125	MT-160
	Power - kw	1.5	2.2	3.8	6	7.5	8.6	11.3	15	17.2	22.6
Pump	Type	Coaxial Volute Pump	Coaxial Volute Pump	Coaxial Volute Pump	Coaxial Volute Pump	Coaxial Volute Pump	Coaxial Volute Pump	Coaxial Volute Pump	Coaxial Volute Pump	Coaxial Volute Pump	Coaxial Volute Pump
	Power - kw	0.38	0.38	0.38	0.75	0.75	1.5	1.5	2.2	3.8	3.8
	Water Flow - L/min	36	54	90	145	180	225	270	360	450	540
	Water Head - M	3 ~ 12	3 ~ 12	3 ~ 12	3 ~ 12	3 ~ 12	3 ~ 12	3 ~ 12	3 ~ 12	3 ~ 12	3 ~ 12
Cooling Watert	L/min	28 ~ 35	35 ~ 40	53 ~ 64	78 ~ 92	120	140	170	400	500	600
Condenser		Double Tube Condenser	Double Tube Condenser	Double Tube Condenser	Double Tube Condenser	Double Tube Condenser	Double Tube Condenser	Double Tube Condenser	Double Tube Condenser	Double Tube Condenser	Double Tube Condenser
Evaporator		K70 x 20C	K70 x 34C	K105 x 34CT	K105 x 40CT	K205 x 30CT	K205 x 34CT	K205 x 34CT	K205 x 50CT	K205 x 50CT	K205 x 50CT
Refrigerant		R-22	R-22	R-22	R-22	R-22	R-22	R-22	R-22	R-22	R-22
Outside Dimensions	H (mm)	950	950	1250	1250	1350	1350	1350	1350	1350	1350
	W (mm)	380	380	470	470	535	535	535	585	730	730
	D (mm)	600	600	680	680	890	890	890	1220	1220	1220
Wheel	C	100	100	100	100	100	100	100	100	100	100
Diameter For Cooling	inch	3/4"	1"	1"	1 1/4"	1 1/2"	1 1/2"	1 1/2"	2"	2 1/2"	2 1/2"
Diameter For Chilling	inch	3/4"	1"	1"	1 1/4"	1 1/2"	1 1/2"	1 1/2"	2"	2 1/2"	2 1/2"
Power Soure Wire	mm	2.0 x 4C	2.0 x 4C	3.5 x 4C	5.5 x 4C	8.0 x 4C	14.0 x 4C	14.0 x 4C	22.0 x 4C	22.0 x 4C	30.0 x 4C
Weight	Kg	70	100	140	180	200	230	250	360	400	430
